Enterprise-Grade GNSS Sensor for Continuous Infrastructure Monitoring

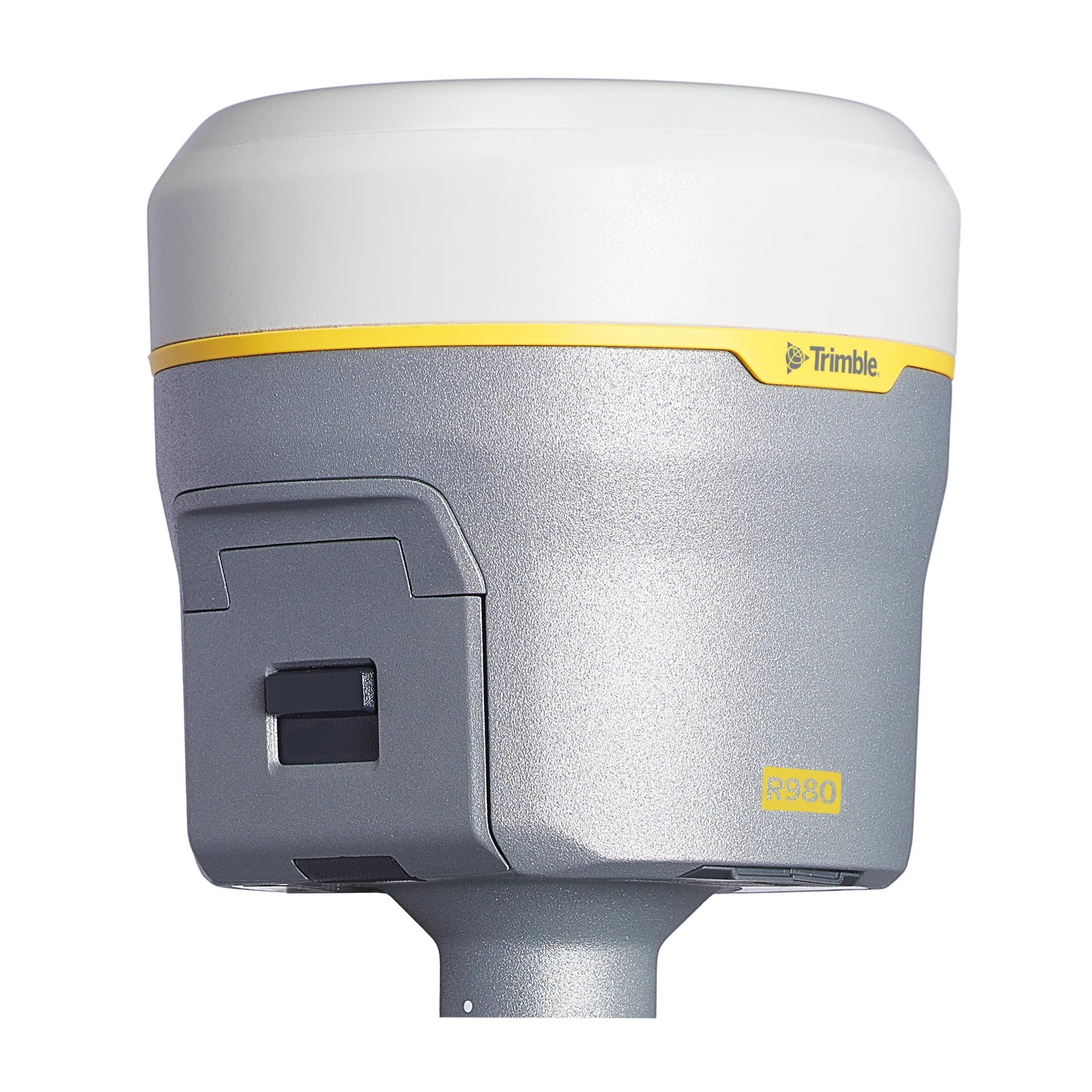

Trimble R980 GNSS Monitoring Sensor is a high-performance GNSS receiver
designed for continuous, real-time monitoring of displacement and deformation in
critical infrastructure and geotechnical applications.

The sensor delivers millimeter-level positioning accuracy and is optimized for
long-term, permanent installations where reliability, data continuity, and
real-time integration with monitoring platforms are essential.

Measured Parameters

• Horizontal displacement (X, Y)
• Vertical displacement / settlement (Z)
• Displacement velocity and long-term trends

Typical Accuracy

• Horizontal: ±1–2 mm (RTK)
• Vertical: ±3–5 mm (RTK)

GNSS Capabilities

• Multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou)
• Multi-frequency GNSS tracking
• RTK and Network RTK support
• Designed for 24/7 continuous monitoring

Data Output & Integration

• GNSS position data (RTK)
• NTRIP correction support
• Ethernet and network-based data streaming
• Compatible with monitoring dashboards and SHM platforms

Typical Applications

• Bridge and viaduct displacement monitoring
• Pipeline and linear infrastructure monitoring
• Dams, embankments, and retaining structures
• Foundations and industrial facilities
• Landslide and ground movement monitoring

infrascan Integration

Trimble R980 GNSS Monitoring Sensors can be seamlessly integrated into InfraScan
monitoring systems, enabling real-time visualization, displacement trend analysis,
and automated alerts through the monitoring dashboard.

GNSS sensors are typically used as global displacement references and are combined
with tilt, crack, and vibration sensors to deliver a comprehensive infrastructure
monitoring solution.
