Description

Ultra-High Precision Biaxial Tilt Sensor for Critical Structural Monitoring

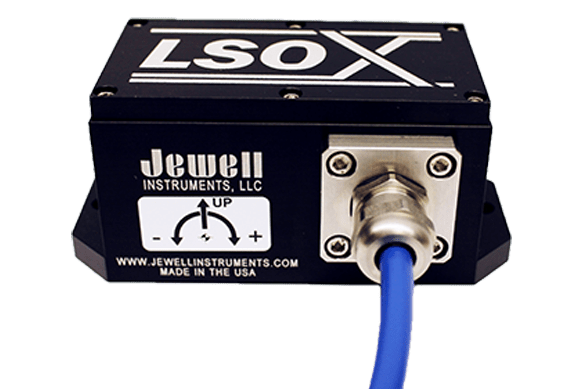

Jewell LSOX Biaxial Tilt Sensor is a reference-grade inclination
sensor designed for continuous, real-time monitoring of very small angular
changes in critical infrastructure and high-value assets.

This class of sensor is used when long-term stability, very low drift, and
high-resolution biaxial tilt measurement are required to detect early-stage
structural rotation and slow deformation processes.

Measured Parameters

• Biaxial tilt / inclination (X and Y axes)
• Loss of verticality in two orthogonal directions
• Long-term rotational trends

Typical Use Case

• Reference-grade tilt node for critical assets
• Baseline tilt monitoring for long-term stability assessment
• Early detection of micro-rotation and slow deformation

Data Output & Integration

• Industrial output options (model-dependent)
• Suitable for permanent installations
• Compatible with monitoring data loggers and SHM platforms

Typical Applications

• Bridges and viaducts
• Dams and large civil structures
• High-rise buildings and critical facilities
• Industrial structures where micro-tilt is important

infrascan Integration

Jewell LSOX Biaxial Tilt Sensor can be integrated into InfraScan monitoring
systems to provide reference-grade tilt visualization, long-term trend analysis,
and automated alerts for critical structural behavior.

This sensor is typically deployed as a high-precision reference node and combined
with GNSS displacement sensors, crack meters, and cost-effective tilt sensors to
build scalable multi-tier monitoring systems.
